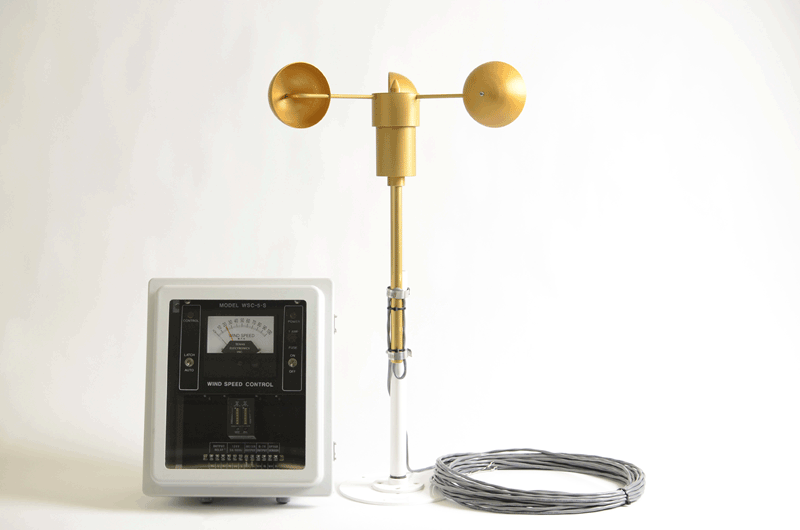

Texas Electronics WSC-5 Wind Speed Activated Controller
The Texas Electronics, Inc. WSC-5 Wind Speed Activated Control System is designed for switching on and/or off, various types of equipment based on specified wind speed parameters. Designed to withstand harsh environments the WSC-5 is a truly commercial/research-grade instrument that is ideally suited for safety applications such as cranes and other types of high reach and load bearing equipment where strong winds can pose a danger.
The relays are energized at wind speeds exceeding the set points, but automatically de-energized when wind speed falls below the set points. In the Latching mode, the relays energizes when the wind speed set points are exceeded and remain energized until manually reset.
Specifications
| Weight |
18.5000 lbs |
| Dimensions |
N/A |
| Accuracy |
+/- 2.0 MPH (0.9 m/s)
|
| Controller |
Dual Wind Speed Controller, Wind Speed Controller Single
|
| Cable |
60', 18 gauge 2 conductor
|
| Output |
0-1 V , 4-20 mA
|

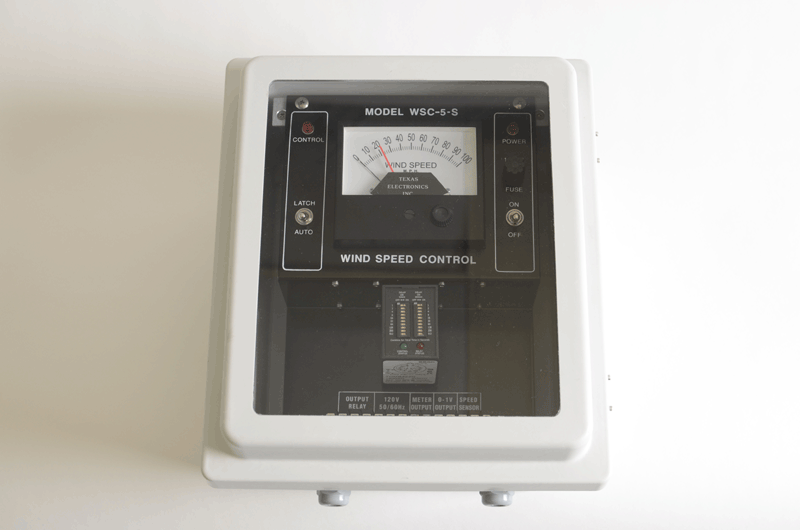

| Control Console Size |
12" W x 15.5" H x 7.5" D
|

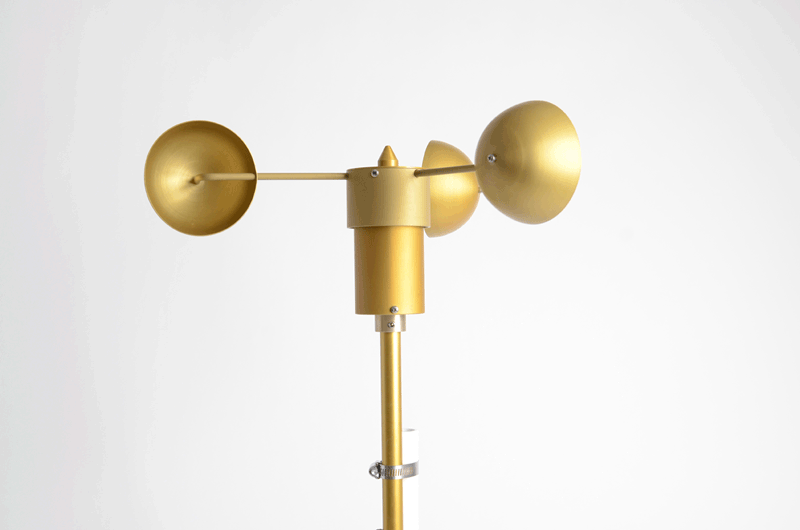

| Cup Wheel Diameter |
18" (45.7 cm)
|
| Distance Constant |
21.7 ft. (6.6 m)
|
| Dual Set Point Units |
Adjustable to within 0 MPH of each other
|
| Enclosure Type |
Covers: NEMA style 3, 3R, 4, 4X, & 12; Mounting: Wall Type; Finish: Gray Fiberglass throughout with Lexan viewing window
|
| Excitation |
None, self-generating
|
| Indication / actuation Accuracy |
2% of full scale
|
| Indicator Range |
0-100 MPH
|
| Operational Envelope |
0 to 120 MPH (0 to 53.7 m/s)
|

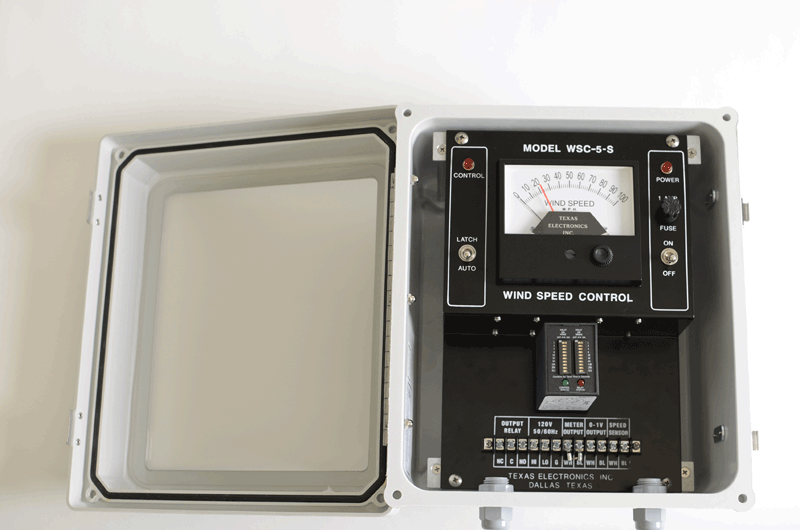

| Operator Controls |
1.) on-off switch; 2.) set point adjustment knob(s); 3.) time delay set point knob(s); 4.) latch & auto switch
|
| Overall Height |
7.5" (19.1 cm)
|
| Power Consumption |
Approximately 3 Watts
|
| Set Point Adjustability |
Adjustable over full scale
|
| Starting Threshold |
2.2 to 3.0 MPH ( 1.1 to 1.3 m/s)
|
| Time Delay Relays |
Switch Settable Time Delays from 0.1s to 1023s; +/- 2% Setting Accuracy; +/- 0.1% Repeat Accuracy; SPDT or DPDT; 10 A Output Contacts
|
| Turning Radius |
9.0" (22.9 cm)
|
| Warranty |
3 years
|
