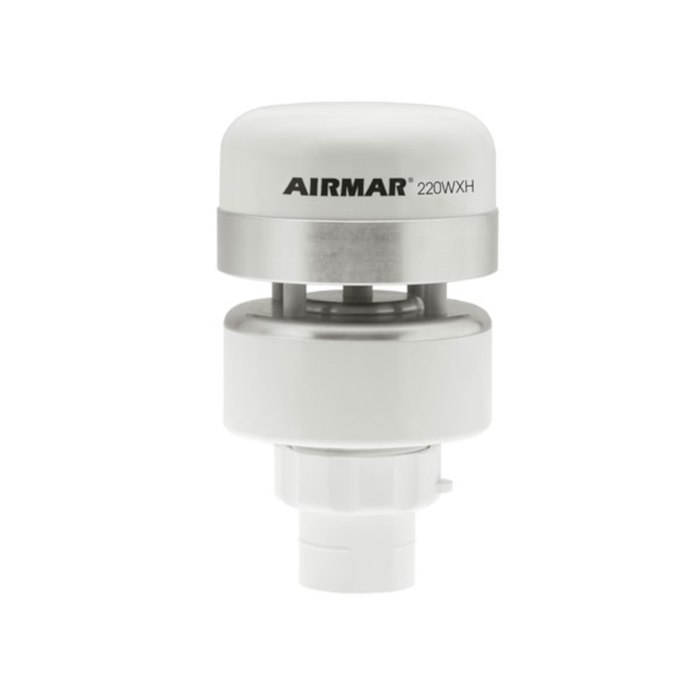

Airmar - 220WX NMEA 0183 WeatherStation® - (No Relative Humidity) - RS232 - Heater

$1,920.00

✔ Free Shipping US Wide

✔ Easy 30 Day Returns

✔ Best Price Guarantee

✔ Expert Customer Service

why you should buy from weather scientific

Product Description

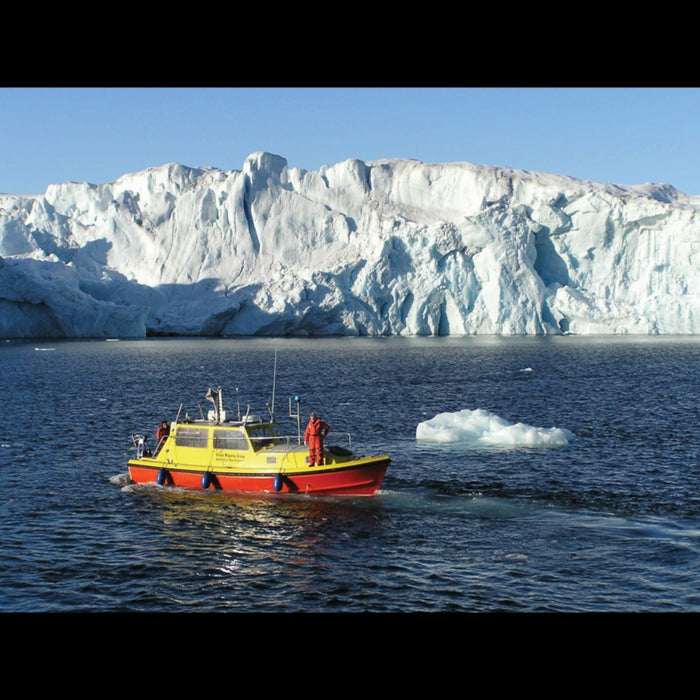

Heater for Commercial Fishing in Ice-prone Areas

The patented 220WXH is Airmar’s choice for commercial-fishing, weather-monitoring applications in ice-prone areas. Designed with a highly effective, thermostatically controlled, heating system, it operates effectively in cold climates. Feature rich in a durable, rugged, small-footprint housing that is IPX6 rated, the 220WXH calculates the theoretical wind speed and direction based upon the apparent wind, speed of the vessel, and vessel heading.

The 220WXH has an internal 10 Hz GPS and three-axis electronic compass. These sensors gives heading, position, speed-over-ground, and course-over-ground functionality that is required for theoretical wind-data processing and mobile applications. A 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data.

Features

  • Ultrasonic measurement of apparent and theoretical wind speed and direction
  • Thermostatically controlled heater element
  • Barometric pressure
  • Air and wind chill temperature
  • GPS position, speed over ground, course over ground
  • Three-axis, solid-state compass with dynamic stabilization
  • Three-axis rate gyro supplies rate-of–turn data
  • Three-axis accelerometer for best-in-class pitch and roll information
  • Housing rated IPX6 for water-ingress protection
  • Data output via a single cable (various lengths available)
    • NMEA 0183 serial protocol over RS-422 standard interface or RS-232 interface
    • The 220WXH cannot be used with an NMEA 2000® CAN bus network.

Specifications

  • Brand: Airmar Technology
  • Air Temp Accuracy: ±1.1°C at 20°C
  • Air Temp Range: -40 to 80°C (-40 to 176°F)
  • Air Temp Resolution: 0.1°C
  • Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
  • Barometric Pressure Range: 300 to 1100 hPa
  • Barometric Pressure Resolution: 0.1 hPa
  • Certs And Standards: CE, IPX6, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
  • Comm Method: NMEA 0183
  • Communications Available Hardware Interface: Serial RS-232, Serial RS-422
  • Communications Available Protocol: Comma delimited ASCII, NMEA 0183
  • Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
  • Country of Origin: USA
  • Display Connector: Cable Required
  • Exterior Color: White
  • Exterior Color: White
  • GPS Position Accuracy: 3 m (10') CEP
  • Heater Supply Current: <2.5 A (<60 W) at 24 VDC
  • Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
  • Note: Cables sold separately
  • Operating Temp Range: -25 to 55°C (-13 to 131°F)
  • Operating Temp Range Cycles: Heater cycles on when sensor reaches 1°C
  • Operating Temp Range Heater: -40 to 55°C (-40 to 131°F)
  • Pitch Roll Accuracy: ±1° in range of ±30°
  • Pitch Roll Measurement Type: MEMS
  • Pitch Roll Range: 50°
  • Power Supply Current: <38 mA (<0.9 W) at 24 VDC
  • Power Supply Voltage: 12 to 24 VDC
  • Recommend Use: Marine, Mobile
  • RoHS Compliant: Yes
  • Sensor Connector: 10WSH
  • Three Axis Compass Dynamic Heading Accuracy: 2° dynamic heading accuracy
  • Three Axis Compass Range: 0 to 359.9°
  • Three Axis Compass Static Heading Accuracy: 1° static heading accuracy
  • Waterproof Rating: IPX6
  • Weight: 350 g (0.8 lb.)
  • Wind Direction Accuracy: ±3° at 10 m/s
  • Wind Direction Range: 0° to 359.9°
  • Wind Direction Resolution: 0.1°
  • Wind Speed Accuracy: 5% at 10 m/s at 4 angles
  • Wind Speed Calculations: User configurable damping
  • Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
  • Wind Speed Resolution: 0.1 m/s
  • Humidity: Not Available
  • Refurbished: No

Data Output

Serial Data Output Protocol

NMEA 0183 Sentence Structure – Comma Delimited ASCII Format
$GPDTM GPS Datum Reference
$GPGGA GPS Fix Data
$GPGLL Geographic Position—Latitude and Longitude
$GPGSA GNSS DOP and Active Satellite
$GPGSV Satellites in View
$GPRMC Recommended Minimum GNSS
$GPVTG COG and SOG
$GPZDA Time and Date
$HCHDG Heading, Deviation, and Variation
$HCHDT True Heading
$HCTHS True Heading and Status
$TIROT Rate of Turn
$WIMDA Meteorological Composite
$WIMWD Wind Direction and Speed
$WIMWV Wind Speed and Angle
$WIMWR Relative Wind Direction and Speed
$WIMWT Theoretical Wind Direction and Speed
$YXXDR Transducer Measurements

Documents

  • Owners-Guide-17-461-01-es
  • Owners-Guide-17-461-01-fr
  • Owners-Guide-17-461-01-it
  • WX-LAND-HEATER-APP
  • DimensionsD-92-262-01
  • InstallationD-17-461-01
  • InstallationD-17-528-02
  • InstallationD-18932
  • WiringD-91-1251
