Boltek LRX-1 Lightning Network Detector

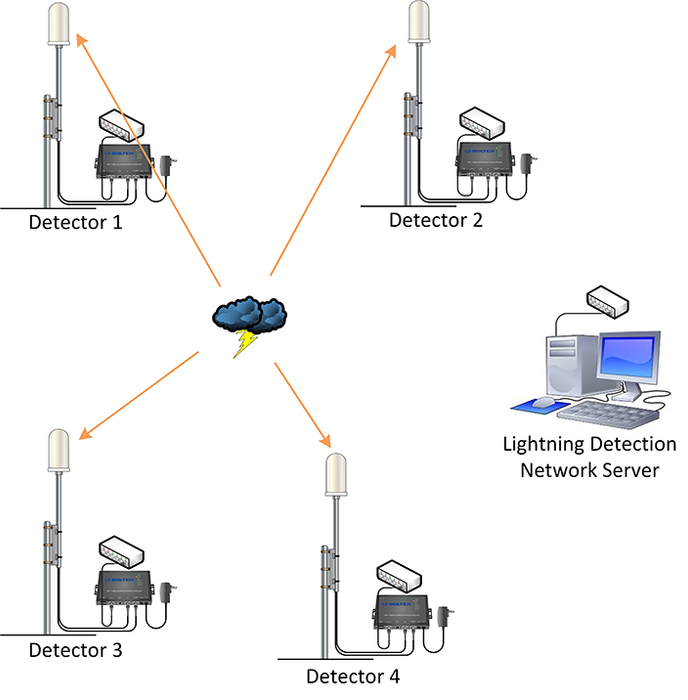

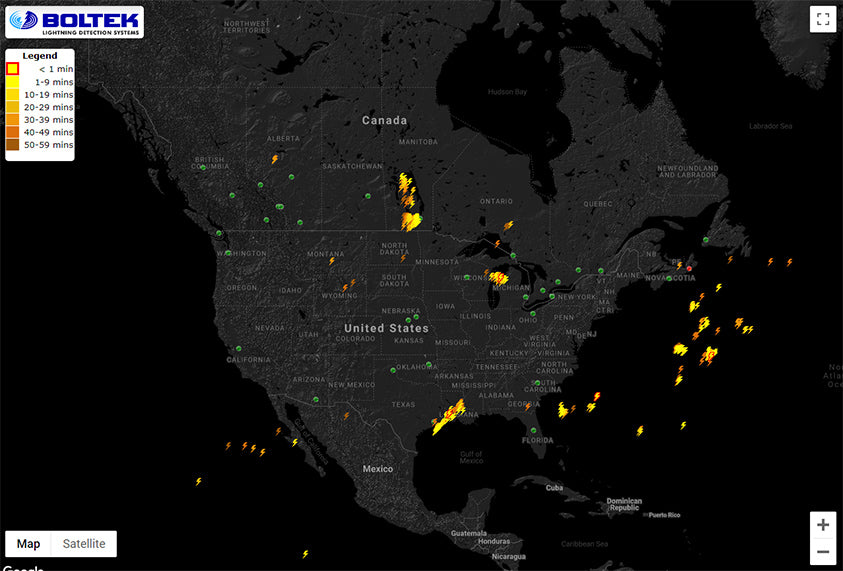

The LRX-1 Lightning Network Detector allows users to create a lightning detection network. In the standard configuration, data from multiple distributed lightning detectors is sent over the internet to a central server for processing. Once the exact strike location is calculated the data is both stored in a database on the server and sent back over the internet to live display clients. Static and animated lightning maps can also be created for display on a web site.

Features:

  • High accuracy timing GPS and signal capture
  • Can be configured with up to three independant servers
  • Remote administration and firmware updates
  • Weatherproof and UV resistant sensor
  • Does not require a PC for data transmission

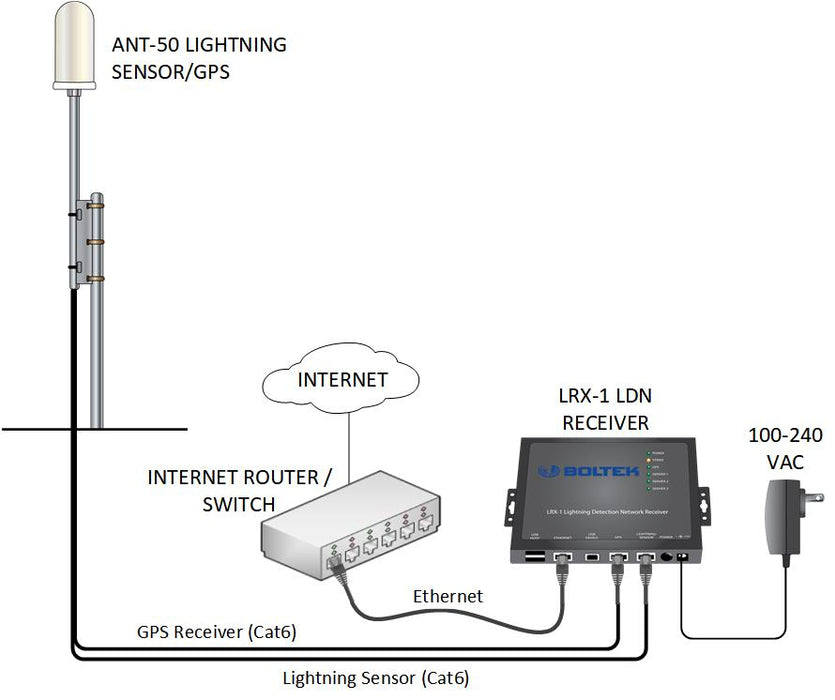

Parts Included:

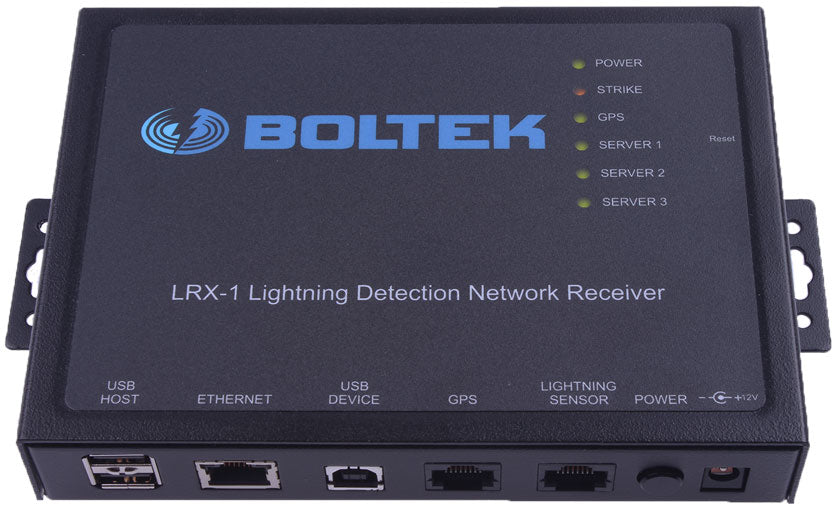

  • LRX-1 Lightning Network Detector

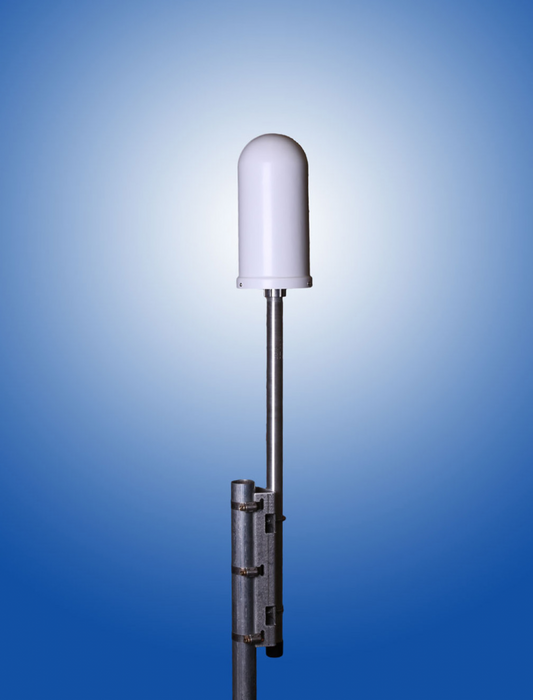

  • ANT-50 Lightning Sensor / GPS
  • Pole Mount Bracket / Mast for ANT-50
  • 120VAC or 100-240VAC Power Supply
  • 100Ft (30m) CAT5 Cable for ANT-50 Lightning Sensor
  • 100Ft (30m) CAT5 Cable for ANT-50 GPS
  • 6Ft (1.8m) CAT5 Cable for Network

LRX-1 Lightning Network Detector Product Brochure / Specification Sheet
LRX-1 user manual and installation guide
